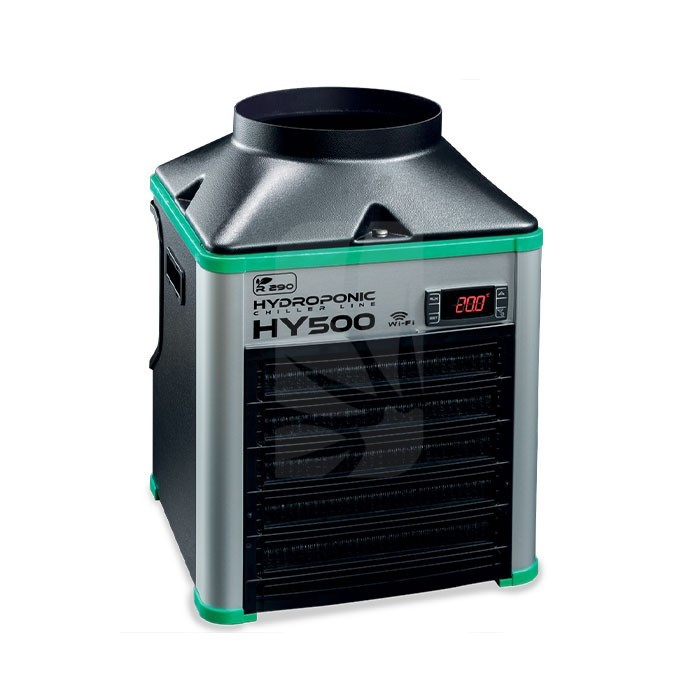

HY 500 Water Chiller

HY 500 Water Chiller

The HY 500 Water Chiller is designed for tanks up to 220 L, with a recommended flow rate of around 800 L/h. The integrated control allows you to set a precise setpoint and keep the water between 18–22 °C, a range that maximizes dissolved oxygen and promotes efficient ionic assimilation.

The internal architecture uses a silent compressor and optimized condenser, achieving a balance between power and energy savings.

The result is stable water that reduces biofilm, limits algae, and decreases the appearance of root pathogens.

With a weight of 16.5 kg and a square footprint, the unit fits into small spaces or under grow tables, and the digital panel simplifies setup and quick temperature reading.

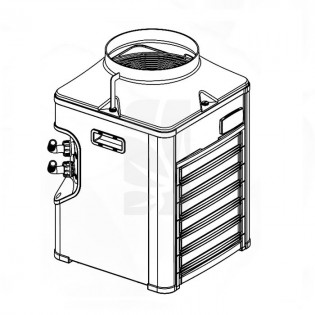

The hydraulic circuit connects via hoses to the chiller's inlet and outlet, creating a tank→chiller→tank loop that continuously extracts heat.

In environments with powerful LEDs or during warm months, keeping the solution below 22 °C stabilizes pH and EC, improves root vigor, and sustains productivity.

Available at the Hydroponics Blanes online grow shop, a trusted Grow Shop with technical advice, a wide range of irrigation accessories, and discreet shipping.

Indoor Growing HY 500 Water Chiller

In indoor grow tents and rooms, thermal control of the tank makes the difference. HY 500 Water Chiller protects performance when ambient temperature rises, keeping the solution at ideal values for roots, beneficial microbiota, and nutrient solubility. Cooler water retains more dissolved oxygen, reduces stress, and helps water indoor crops consistently throughout the photoperiod.

What is the HY 500 Water Chiller for?

It is used to cool and stabilize the tank, avoiding thermal spikes that shift pH/EC, promote algae, and compromise root respiration. It also acts as an operational safeguard in NFT, DWC, RDWC, and drip irrigation, keeping the mix homogeneous between cycles. In setups with high lighting density or in summer, it provides recipe continuity and improves the uniformity of each watering.

Accessories for indoor grow irrigation HY 500 Water Chiller

To get the most out of the HY 500 Water Chiller, it is advisable to use it with:

• Recirculation pump close to 800 L/h for the hydraulic loop.
• Hoses, clamps, and watertight fittings compatible with the unit's ports.
• Thermal insulation on the tank and lines to reduce ambient heat gain.
• Instrumentation: pH meter, EC meter, and water thermometer for continuous monitoring.
• Prefilter on suction to retain solids and prolong the efficiency of the exchanger.

All available at Hydroponics Blanes, with compatibility guides and discreet shipping from the online grow shop.

How to use HY 500 Water Chiller?

1) Place on a level surface with free ventilation at the front and sides.
2) Connect the chiller's inlet/outlet to the tank with suitable hoses; secure with clamps.
3) Add a recirculation pump that delivers ≈800 L/h; prime the circuit by expelling air.
4) Turn on and set the setpoint on the digital thermostat (recommended 18–20 °C).
5) Check stability after 30–60 min; adjust flow or setpoint if necessary.
6) Preventive maintenance: cleaning ports and hoses, periodic dust removal from grilles, leak check, and alarm review.
7) Datasheet guide parameters: consumption 220 W, dimensions 310 x 310 x 416 mm, weight 16.5 kg, compatible capacity up to 220 L.

This procedure reduces thermal fluctuations, maintains the level of dissolved oxygen, and keeps the nutrient recipe homogeneous between waterings in any irrigation system.

HY 500 Water Chiller Price

The price of the HY 500 Water Chiller may vary due to promotions, availability, and packs that include pump, hoses, and insulation. There are combinations aimed at new installations that optimize the total system cost. Check active offers at Hydroponics Blanes.

Where to buy HY 500 Water Chiller online?

Available at Hydroponics Blanes, a trusted Grow Shop specialized in indoor growing and irrigation systems. Secure shopping platform, expert support, and discreet shipping from the online grow shop to all of Spain.

HY 500 Water Chiller provides real thermal control with low consumption and a compact format: stable tank, more dissolved oxygen, and efficient roots.

Integrated with a suitable pump, insulation, and continuous measurement of pH/EC, it turns the tank into a robust point of the process for precise indoor crop watering.

At Hydroponics Blanes it is easy to complete the setup with compatible irrigation accessories and technical support at every stage.
