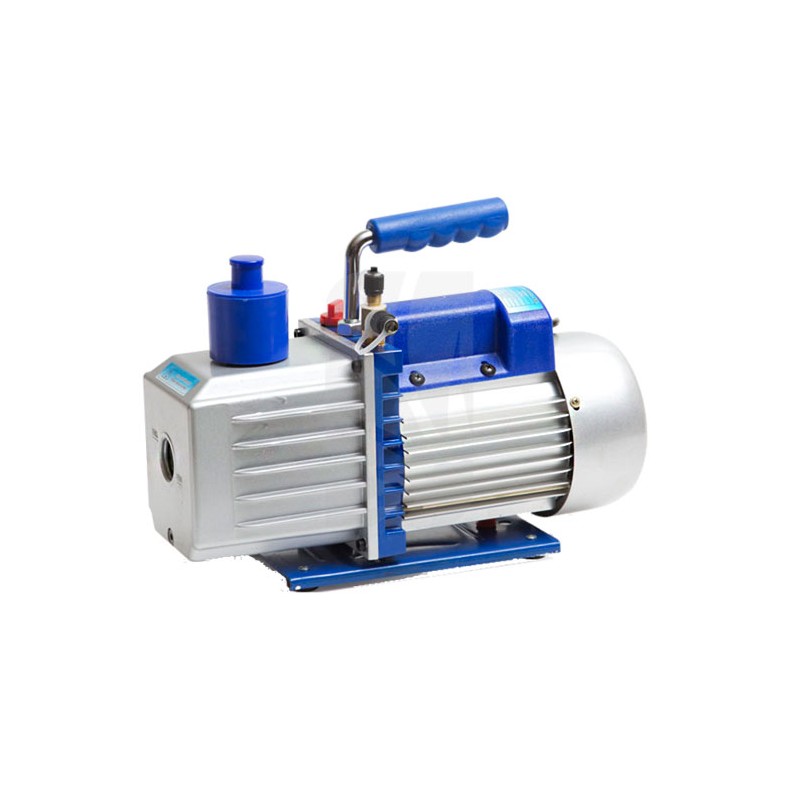

HBS Vacuum Pump 6 CFM (220V/50HZ)

Remove residual gas with HBS 6 CFM Vacuum Pump (220V/50HZ)

The HBS 6 CFM Vacuum Pump (220V/50HZ) stands out as a stable vacuum tool for post-processing work with hash oil. The unit is compatible with methacrylate or polycarbonate desiccators and allows for very low pressures to be achieved for efficient purging.

Lightweight design, portable format and a 560 W motor offer continuous flow (6 CFM ≈ 170 L/min) with a final vacuum of 22 microns / 0.030 mbar, an ideal figure for expelling residual solvents and gases trapped after extraction.

A 370ml oil tank, robust chassis and dual stage (2-stroke) engine combine for stable performance during extended sessions.

By integrating this pump with a suitable bell, hose and valves, the extractor achieves more homogeneous textures (shatter, budder, crumble) and clean aromatic profiles.

At Hydroponics Blanes , a trusted and leading Grow Shop in Spain , it appears within the category of BHO Accessories , BHO tools and BHO extraction kits , with online availability and discreet shipping to guarantee privacy in every order.

Accessories for extractions HBS Vacuum Pump 6 CFM (220V/50HZ)

This unit integrates with desiccators, adapters, and vacuum-resistant hoses. Its purpose is to create an airtight system that facilitates the gradual evacuation of the gas, protecting terpenes and preventing oxidation from prolonged exposure to the environment. Thanks to its compact dimensions (360 × 135 × 275 mm) and weight of 11 kg, it is easy to assemble on a workbench. The pump is suitable for installation on laboratory benches, in technical rooms, or in well-ventilated domestic spaces.

What is the HBS 6 CFM Vacuum Pump (220V/50HZ) used for?

The HBS 6 CFM Vacuum Pump (220V/50HZ) is used to purge hash oil in a desiccator after solvent extraction (e.g., butane), a key step in the BHO extraction process. The sustained vacuum helps release residual gases trapped in the concentrate matrix, reducing bubbling and improving stability. It also promotes cleaner, more consistent textures, essential for those who value cannabinoid concentration and terpene profile.

Extraction Tool HBS Vacuum Pump 6 CFM (220V/50HZ)

As an extraction tool , it offers high flow rates and a two-stage system, resulting in shorter purge times and deeper vacuums. The side window allows for verification of the working oil level, an essential variable for maintaining the vacuum limit. Simple maintenance—changing the oil when it becomes cloudy, milky, or contains water—extends its lifespan and maintains optimal performance. Key features:

• Speed: 170 L/min (≈ 6 CFM)
• Stages: 2 times (double stage)
• Final vacuum: 22 microns / 0.030 mbar
• Motor: 560 W – 220 V (50 Hz)
• Oil capacity: 370 ml
• Weight: 11 kg
• Dimensions: 360 × 135 × 275 mm

How do I use the HBS 6 CFM Vacuum Pump (220V/50HZ)?

Recommended procedure for purging hash oil with a desiccator:

1. Oil check: Check the level in the side sight glass; the mid-range between minimum and maximum is suitable. If it's the first time the engine is started or the level is low, top it up through the top plug with the oil included in the kit.
2. Dryer connection:
   • Polycarbonate desiccator: attach a specific quick-connect plug to the valve (directly or with adapters).
   • Methacrylate desiccator: connect hose to valve (with or without adapters) and ensure watertightness.
3. Product loading: Place tray/patch with the extract inside the desiccator, closing the lid without leaks.
4. Start-up: Turn on the HBS 6 CFM Vacuum Pump (220V/50HZ) and gradually open the valve to achieve a vacuum. Maintain vacuum cycles according to the desired texture, alternating rest periods if necessary.
5. Process control: monitor pressure and appearance of the concentrate. Avoid excessive temperatures on the desiccator's heated bed to preserve volatile compounds.
6. Maintenance: Change the oil when it appears dirty, muddy, or contains water; these contaminants limit vacuum and lengthen service times.

Best practices: work in a well-ventilated area, wear gloves and safety glasses, and comply with local regulations regarding gases and solvents. A properly sealed system and clean oil make a significant difference in the speed and cleanliness of purging.

Price of HBS Vacuum Pump 6 CFM (220V/50HZ)

The HBS 6 CFM Vacuum Pump (220V/50HZ) is competitively priced considering its flow rate, two-stage operation, and ease of maintenance. It's a strategic investment for those looking to reduce purging times and scale production without sacrificing concentrate purity.

Where can I buy an HBS 6 CFM Vacuum Pump (220V/50HZ) online?

Available at Hydroponics Blanes , a grow shop in Spain with a wide catalog of BHO accessories , BHO extraction kits , and BHO tools . Shop online with discreet shipping and expert advice from a trusted grow shop to help you choose compatible hoses, adapters, and desiccators.

The HBS 6 CFM Vacuum Pump (220V/50HZ) raises the standard for purging hash oil: generous flow rate, deep vacuum and easy handling within a compact body.

Integrated with a desiccator and appropriate thermal control, it allows for stable and aromatic concentrates, backed by the technical support of Hydroponics Blanes and a discreet shipping service that takes care of every detail.
