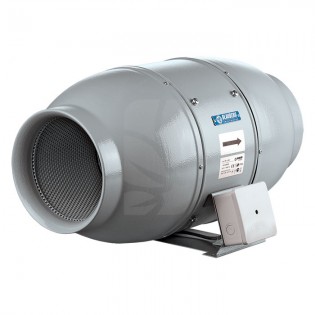

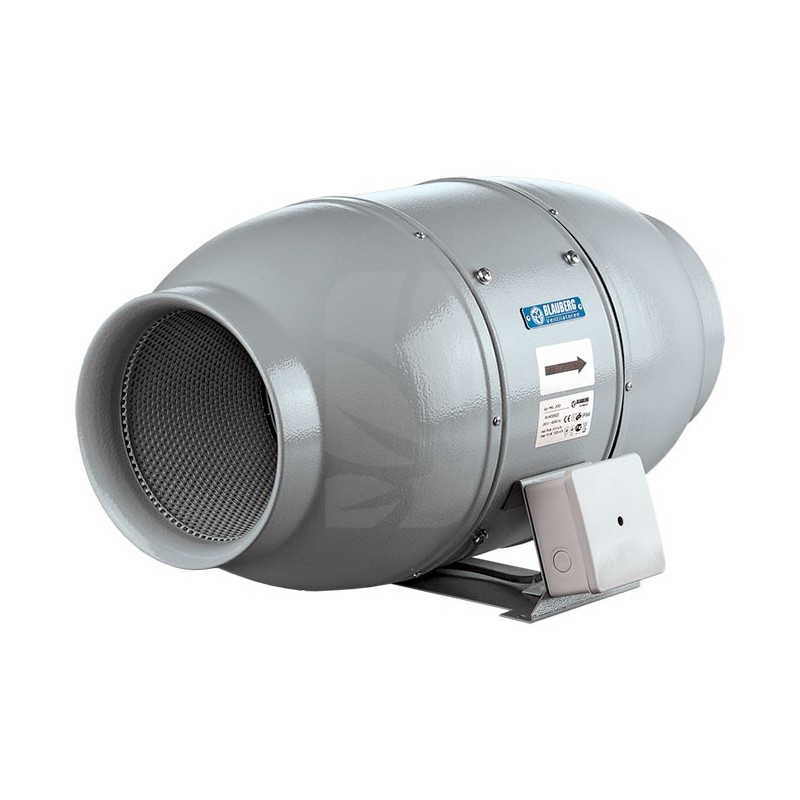

Iso-Mix 315 Extractor (1510–1920 m3/h)

Iso-Mix 315 Extractor (1510-1920 M3/h) Silent Ventilation

The Iso-Mix 315 Extractor (1510-1920 M3/h) belongs to the soundproofed Iso-Mix range, designed for projects that require stable airflow, good pressure, and low noise levels. The metal body provides structural rigidity and the internal chamber with 50 mm foam dampens hums and aerodynamic noise without penalizing performance. A three-position switch (VEL 1 / OFF / VEL 2) allows you to adjust flow to the thermal load of each phase.

Highlighted specifications: minimum airflow 1510 m³/h and maximum 1920 m³/h, inlet diameter 315 mm and outlet 313 mm, approximate speed 1510–1920 rpm, consumption 213–313 W, reference sound level 36–40 dB, dimensions 780 × 434 mm and weight 25 kg. The motor includes thermal protection to stop the equipment in case of critical temperatures.

The integrated mounting bracket speeds up installation on the ceiling or wall with anti-vibration straps. When combined with 315 mm carbon filters, suitable ducting, and proper sealing, you get odor control, heat evacuation, and constant CO₂ renewal.

The entire installation ecosystem —ducts, clamps, reducers, controllers— is available at Hydroponics Blanes, a Grow Shop in Spain with specialized service, discreet shipping, and a catalog of cannabis cultivation accessories and cheap indoor grow tents from a true trusted Grow Shop.

Note: as with most professional extractors, the mains connection cable is purchased separately according to installation requirements.

Indoor Growing Iso-Mix 315 Extractor (1510-1920 M3/h)

In XXL tents and compact rooms with powerful lighting, well-sized extraction avoids hot spots, stabilizes humidity, and maintains proper CO₂ values. Iso-Mix 315 Extractor (1510-1920 M3/h) combines soundproofing, available pressure, and two speeds to work with 315 mm layouts, moderate bends, and odor filtration, without raising the overall noise of the room.

What is the Iso-Mix 200 Extractor (790-1035 M3/h) for?

The heading refers to the 200 mm model and helps place the Iso-Mix family. Common functions of the range: continuous air renewal, odor control when the circuit includes a carbon filter, thermal and humidity stability, and sufficient pressure to overcome losses in bends and accessories. In the case of the Iso-Mix 315 Extractor (1510-1920 M3/h), the higher airflow margin covers larger surfaces and more demanding routes.

Indoor cultivation accessory Iso-Mix 315 Extractor (1510-1920 M3/h)

Among the most in-demand cannabis cultivation accessories for demanding rooms, it stands out for its steel construction, 50 mm insulation, and two-speed switching. The 315 mm flange ensures compatibility with flexible or rigid ducts, grilles, reducers, and standard silencers. With proper integration, you get a homogeneous climate, less heat stratification, and regular flow through the carbon filter.

What is the Iso-Mix 200 Extractor (790-1035 M3/h) used for?

The 200 mm reference is used in medium tents or as a silent intake fan. When the project demands more volume and pressure, the Iso-Mix 315 Extractor (1510-1920 M3/h) takes on the main extraction in large tents (e.g., 120×240, 150×150, 200×200 cm, always sizing according to lighting power and duct length) and in rooms where real noise reduction is needed without sacrificing airflow.

How to use Iso-Mix 315 Extractor (1510-1920 M3/h)

1. Calculate need: room volume (m³) × air changes/hour (30–60 as a reference) and add losses for filter and bends.
2. Place in a high area to extract accumulated hot air; plan a short route with minimal changes of direction.
3. Attach to 315 mm duct and carbon filter of the same diameter; seal joints with aluminum tape and clamps.
4. Secure using the integrated mounting bracket and anti-vibration straps to limit structural transmission.
5. Select speed: VEL 1 for gentle supply during cool hours; VEL 2 when the thermal load increases.
6. Check draft with hand or anemometer; check for leaks at joints and clamp tightness after the first few hours.
7. Schedule maintenance: clean pre-filters and ducts to maintain 1510–1920 m³/h and low noise level.

Advantages of using Iso-Mix 315 Extractor (1510-1920 M3/h)

• Real silence thanks to 50 mm insulating foam (≈36–40 dB).
• Adjustable airflow with two speeds and VEL 1 / OFF / VEL 2 switch.
• Available pressure for layouts with bends and 315 mm odor filtration.
• Efficiency and reliability with 213–313 W consumption and thermal protection.
• Easy installation thanks to mounting bracket and robust format 780 × 434 mm.

Where to buy an Iso-Mix 200 Extractor (790-1035 M3/h) online?

The complete Iso-Mix family, including the Iso-Mix 315 Extractor (1510-1920 M3/h), is available at Hydroponics Blanes, with discreet shipping, expert advice from a trusted Grow Shop, and everything you need for Indoor cultivation: controllers, ducts, filters, and cheap indoor grow tents. Secure purchase at a Grow Shop in Spain.

Indicative technical sheet: Min. airflow 1510 m³/h • Max. airflow 1920 m³/h • Inlet 315 mm • Outlet 313 mm • Speeds: 2 • rpm 1510–1920 • Consumption 213–313 W • Sound level 36–40 dB • Dimensions 780 × 434 mm • Weight 25 kg • thermal protection • insulation 50 mm • steel housing.

For projects that prioritize acoustic discretion, adjustable airflow, and robust installation, the Iso-Mix 315 Extractor (1510-1920 M3/h) becomes a key ally. Direct integration with ducts and filtration, plus the support of
