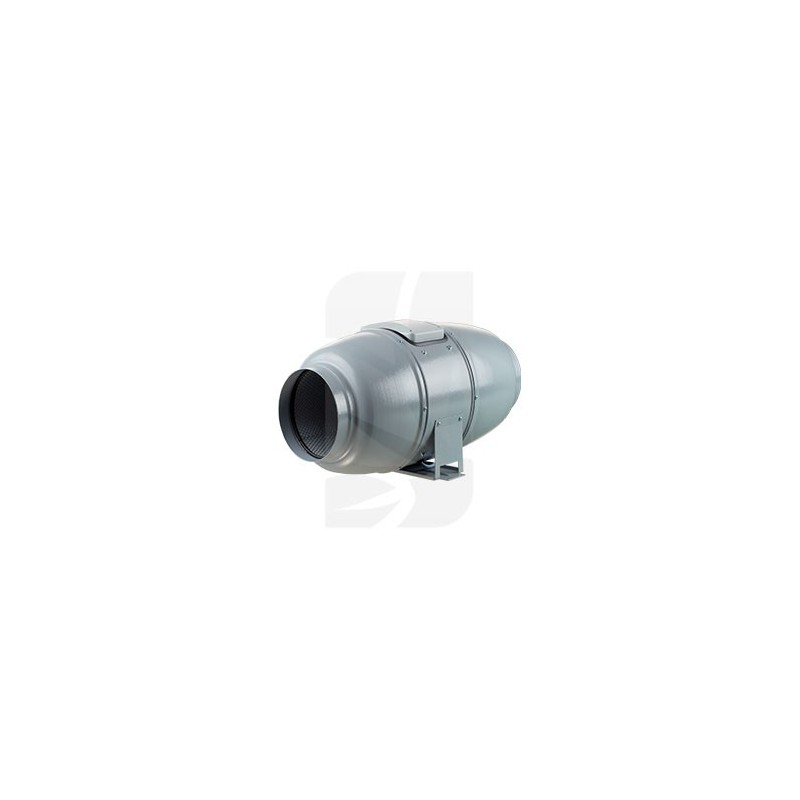

Iso-Mix 100 Extractor Fan (175–233 m3/h)

Iso-Mix 100 Extractor (175-233 m3/h) - Silent ventilation for professional cultivation

The Iso-Mix 100 Extractor (175-233 m3/h) is designed to renew the air with maximum stealth and efficiency. The metal body reduces vibrations, while the acoustic chamber with 50 mm foam dampens aerodynamic noise.

The selector integrates two speeds (VEL 1 / OFF / VEL 2 switch) to adapt the airflow to changing climatic conditions. In numbers: 175–233 m³/h airflow, Ø inlet 100 mm and Ø outlet 98 mm, rotation speed ≈2015–2610 rpm, consumption of just 24–26 W and reference sound level of 24–29 dB. The compact dimensions 505 × 251 mm and the integrated mounting bracket make it easy to install on ceiling or wall, with a total weight of 4.6 kg.

The electronics implement thermal protection to preserve the motor in demanding environments.

Thanks to the available pressure and the soundproofed line, this model manages small tents and mother rooms, drying rooms and short runs with great solvency.

Complete the system with suitable ducts, clamps and filters from the Hydroponics Blanes selection, Grow Shop in Spain with a wide catalog of cannabis cultivation accessories and cheap indoor grow tents, expert advice and discreet shipping.

Indoor Cultivation Iso-Mix 100 Extractor (175-233 m3/h)

A well-sized extraction circuit keeps temperature and humidity under control, avoids dead zones and renews CO₂. Iso-Mix 100 Extractor (175-233 m3/h) fits in compact tents where silence matters, as the Iso-Mix line prioritizes acoustic attenuation with insulating foam and steel chassis.

What is the Iso-Mix 100 Extractor (175-233 m3/h) for?

• Renew the air constantly, removing heat and excess humidity.
• Stabilize the microclimate for proper VPD during growth and flowering.
• Odor control when the setup includes proper filtration and ducting.
• Modulate the airflow with two speeds depending on season and photoperiod.

Indoor cultivation accessory Iso-Mix 100 Extractor (175-233 m3/h)

Considered among the essential cannabis cultivation accessories, this extractor provides a balance between airflow, silence and minimal consumption. The integrated metal bracket speeds up installation in tent structures and walls, and the 100 mm flange ensures compatibility with most ducts and grilles in the industry.

What is the Iso-Mix 100 Extractor (175-233 m3/h) used for?

Recommended use as main extractor in small tents, as a silent intake fan in mother rooms or propagators, and as support in drying rooms where a smooth and continuous flow is needed to avoid humidity spikes. It is also useful for short runs in duct pass-throughs near lights.

How to use Iso-Mix 100 Extractor (175-233 m3/h)

1. Calculate airflow requirement: room volume (m³) × air changes/hour (30–60 as reference).
2. Place the unit in a high area to extract accumulated hot air; plan short runs with few bends.
3. Connect to 100 mm duct with clamps; seal joints with aluminum tape to prevent leaks.
4. Select speed: VEL 1 for gentle supply and VEL 2 for hours of higher thermal load.
5. Check draft with hand or anemometer; check for possible vibrations and tighten fastenings if necessary.
6. Schedule light maintenance: cleaning grilles and checking ducts to maintain 175–233 m³/h and low noise level.
7. Respect the unit's thermal protection and current electrical regulations for connection.

Advantages of using Iso-Mix 100 Extractor (175-233 m3/h)

• Real silence: acoustic chamber with 50 mm foam (≈24–29 dB).
• Energy efficiency: consumption of 24–26 W and stable performance.
• Two speeds with VEL 1 / OFF / VEL 2 switch to adjust airflow.
• Easy installation thanks to integrated mounting bracket and compact format.
• Compatibility with 100 mm flanges, grilles, reducers and silencers.

Where to buy an Iso-Mix 100 Extractor (175-233 m3/h) online?

At Hydroponics Blanes, trusted Grow Shop, the Iso-Mix 100 Extractor (175-233 m3/h) is available with technical advice for ventilation sizing and discreet shipping. Complete catalog of Indoor cultivation, controllers, ducts and cheap indoor grow tents with secure purchase at Grow Shop in Spain.

Indicative technical data sheet: Max airflow 233 m³/h • Min airflow 175 m³/h • Inlet 100 mm • Outlet 98 mm • Speeds: 2 • rpm ≈2015–2610 • Consumption 24–26 W • Sound level 24–29 dB • Weight 4.6 kg • Dimensions 505 × 251 mm • Steel housing with 50 mm insulation • Thermal protection.

For installations seeking silence, efficiency and compact size, Iso-Mix 100 Extractor (175-233 m3/h) makes the difference: two switchable speeds, soundproofed chamber and robust steel chassis guarantee constant air renewal.

With the support of Hydroponics Blanes and discreet shipping, it is easy to complete any Indoor cultivation project with a flow adjusted to each need.
