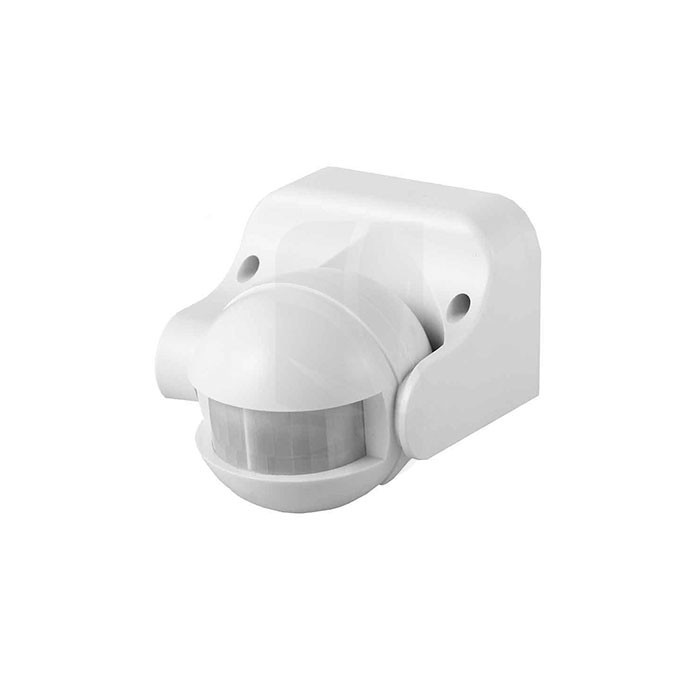

Motion Sensor with 180° Regulator Day/Night

180º Night/Day Motion Detector with Regulator

The 180º Night/Day Motion Detector with Regulator integrates a wide-angle PIR sensor that activates the load when it detects presence within a range of up to 12 m (at <24 ºC), with 220–240V AC power supply, 50 Hz frequency, and ambient light regulation between <3–2000 lux. The timing control allows you to select a delay from 10 s ±3 s up to 7 min ±2 min, adapting the switch-off to short tasks or longer passages.

The Night/Day function prevents unnecessary switching on when there is enough light, key for efficient installations.

The unit, measuring 8.6 × 6 × 9.5 cm, is designed for mounting at a height of 1.8–2.5 m, achieving an optimal surveillance cone in corridors, technical rooms, and nutrient preparation areas.

The white housing blends with professional and domestic environments, while installation is straightforward: line, neutral, and return to the load. In cannabis cultivation accessories projects, this automation reduces residual consumption, minimizes unnecessary heat emission, and provides operational convenience by switching on auxiliary lighting or spot ventilation when there is movement.

An efficient tool within indoor cultivation accessories and tools that helps organize workflows and keep energy under control.

Indoor Cultivation Accessories 180º Night/Day Motion Detector with Regulator

In indoor cultivation spaces with frequent traffic, the 180º Night/Day Motion Detector with Regulator provides automatic switching on in entrances, mixing rooms, corridors, or storage rooms, preventing auxiliary lights and extractors from staying on unnecessarily. The lux adjustment fine-tunes the behavior to operate only in dim light or darkness, keeping the installation organized and efficient.

What is the 180º Night/Day Motion Detector with Regulator for?

• Automate lighting and ventilation according to presence, with a 180º area and a range of up to 12 m.
• Adjust operating time between 10 s and 7 min for short tasks or medium stays.
• Set Night/Day threshold between <3–2000 lux and avoid consumption when there is enough natural or artificial light.
• Increase safety in passage areas, eliminating dark spots.
• Optimize energy costs in installations with multiple accesses and operator flows.

What is the 180º Night/Day Motion Detector with Regulator?

It is a PIR sensor for wall/ceiling mounting with Night/Day regulation, integrated timer, and 180º coverage. It operates at 220–240V AC at 50 Hz, with dimensions 8.6 × 6 × 9.5 cm, recommended for installation heights between 1.8–2.5 m. The electronics switch the load when movement is detected within the configured area, keeping it active for the selected time. The lux control decides whether the system operates only at low lighting or in any light condition. An ally for homes, businesses, and especially for cannabis cultivation accessories environments, where order, safety, and efficiency make the difference.

How to use the 180º Night/Day Motion Detector with Regulator?

1) Planning: choose a location with a clear field of view towards the passage area, respecting the height of 1.8–2.5 m and avoiding obstacles such as shelves or reflective curtains.
2) Connection: cut power, wire line, neutral, and return to the load according to the manufacturer's diagram; check appropriate section and circuit breaker/RCD protection.
3) Settings: select desired delay time (10 s–7 min) and set Night/Day between <3–2000 lux according to use (only darkness, dim light, or any light).
4) Test: energize the circuit, walk through the area; check activation within the 180º angle and the range of up to 12 m at ambient temperature <24 ºC; fine-tune if necessary.
5) Maintenance: clean diffuser, check fixings, and ensure there are no false activations due to vibrations or direct heat sources.

Where to buy a 180º Night/Day Motion Detector with Regulator online?

At Hydroponics Blanes, a trusted Grow Shop, the 180º Night/Day Motion Detector with Regulator is available along with power strips, connectors, timers, and more indoor cultivation accessories and tools. A specialized store like Grow Shop in Spain with discreet shipping in 24/48 h throughout the country, as well as shipments to Portugal, Germany, France, and Italy. Each order includes a 5% discount code for the next purchase, a useful advantage to keep indoor cultivation projects always ready.

The 180º Night/Day Motion Detector with Regulator offers precise automation and energy savings in technical corridors, storage rooms, and preparation areas. The time and lux control adapts the switching on to real needs, promoting a safe and efficient environment. In the Hydroponics Blanes catalog, it is possible to complement with waterproof boxes, quick connectors, ventilation systems, cabinets, substrates, pots, trays, stakes, and other cannabis cultivation accessories, with specialized attention and discreet shipping that simplify project logistics.
