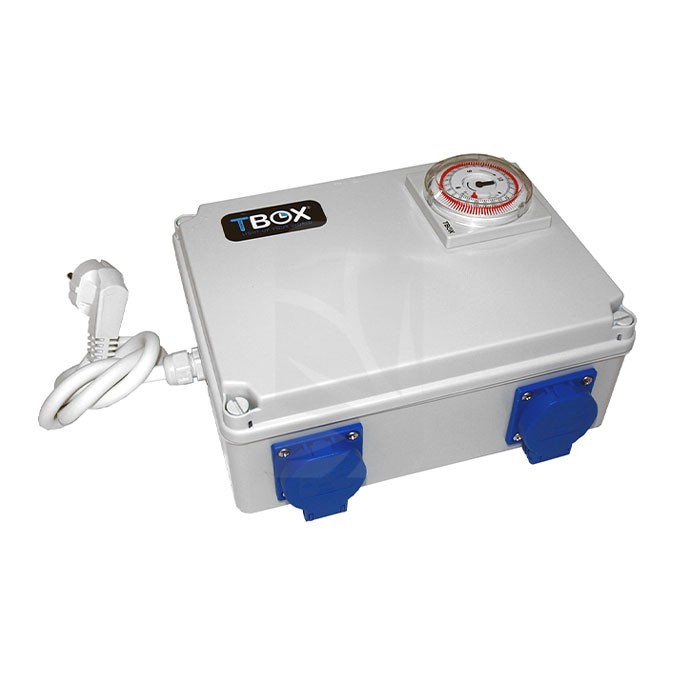

TEMPOBOX Timer 4 x 600 W

TEMPOBOX 4 x 600 W Timer

The TBOX family prioritizes time consistency, cable management, and electrical protection in medium-sized rooms and cabinets. The TEMPOBOX 4 model controls groups of 4 x 600 W, 4 x 630 W, 6 x 400 W, or 8 x 315 W, adapting to common HPS, MH, or dimmable LED configurations.

The core is an analog timer with a minimum switching interval of 15 minutes, enough to define 18/6 photoperiods for growth or 12/12 for flowering with precision.

The 48 h power reserve keeps the program running during micro-outages, preventing disruptions that alter the metabolic rhythm in cannabis plants.

The chassis of 241 x 180 x 95 mm allows for easy mounting on panels, racks, or technical walls; the 230 Vac / 50 Hz power supply ensures compatibility with European panels; and the IP20 protection provides safety against accidental contact.

Each line supports a maximum power of 2,520 W, a figure that helps distribute loads clearly and verifiably, minimizing inrush peaks and extending the lifespan of ballasts and drivers.

Additionally, the 2,400 W auxiliary socket expands possibilities with compatible equipment (e.g., thermal support or auxiliary management according to electrical design).

Integrated with grow controllers (thermostats, humidistats, CO₂ managers) and other indoor electrical accessories (contactors, circuit breakers, residual current devices), the TEMPOBOX 4 x 600 W Timer forms a robust subsystem, with synchronized switching that improves PPFD uniformity, stabilizes temperature/humidity, and facilitates irrigation and pruning routines within cannabis cultivation.

All with the guarantee of a design conceived to optimize time, energy consumption, and operational traceability on a daily basis.

Indoor Growing TEMPOBOX 4 x 600 W Timer

In 120–150 cm cabinets or modular rooms, the TEMPOBOX 4 x 600 W Timer provides a single clock for four lights, reducing manual errors and ensuring constant photoperiods. Coordinated switching smooths thermal curves and prevents partial shading, helping to maintain a uniform canopy within indoor cultivation.

What is the TEMPOBOX 4 x 600 W Timer for?

It is used to automate the switching on and off of up to four 600 W lights (or other indicated combinations), in 15-minute steps and with 48 h backup. It also allows the use of the 2,400 W auxiliary socket for compatible functions according to the electrical project, integrating into indoor growing installations that require constant control and orderly load distribution.

Tool for indoor growing TEMPOBOX 4 x 600 W Timer

As a central tool in the panel, it centralizes outputs, organizes bundles, and simplifies audits. Dimensions of 241 x 180 x 95 mm, 230 Vac / 50 Hz power supply, IP20, and 2,520 W per line build a solid base to combine with contactors, protections, and environmental sensors. The addition of other grow controllers increases safety, repeatability, and performance in cannabis cultivation.

How is the TEMPOBOX 4 x 600 W Timer used?

1) Fix the module on a firm and ventilated surface, respecting IP20 and keeping away from splashes.
2) Connect the power supply to 230 Vac / 50 Hz with appropriately rated circuit breaker and residual current protection.
3) Distribute lights by lines, respecting the maximum power of 2,520 W per line and the recommended cable section.
4) Program the analog timer in 15-minute blocks for growth (18/6) or flowering (12/12).
5) Label each output and organize cables for quick diagnostics and agile maintenance.
6) Check 24 h of operation to confirm switching and photoperiod stability.
7) Integrate with ventilation and environmental control to synchronize airflow with light periods.

TEMPOBOX 4 x 600 W Timer Price

The cost of the TEMPOBOX 4 x 600 W Timer is offset by the reduction of individual modules, less setup time, and fewer incidents due to time mismatches. There are packs and promotions at Hydroponics Blanes, a trusted Grow Shop with a catalog focused on grow controllers and indoor electrical accessories.

Where to buy TEMPOBOX 4 x 600 W Timer online?

Available at Hydroponics Blanes, a Grow Shop in Spain with discreet shipping. The online grow shop offers assistance to size loads, choose wiring, combine ballasts, reflectors, and ventilation, and integrate everything into balanced electrical schemes for different square meters.

Key technical features: Capacity: 4 x 630 W, 4 x 600 W, 6 x 400 W or 8 x 315 W · Dimensions 241 x 180 x 95 mm · 230 Vac / 50 Hz · maximum power 2,520 W per line · 2,400 W auxiliary socket · 15-minute analog timer · 48 h power reserve · IP20.

For projects seeking total light control in a compact format, the TEMPOBOX 4 x 600 W Timer offers a clear control point, programmable in 15 minutes, with 48 h backup and distribution of 2,520 W per line.

Quick purchase and technical support at Hydroponics Blanes, Grow Shop in Spain with discreet shipping and a wide catalog within the online grow shop to boost consistent results in indoor cultivation of cannabis plants.
