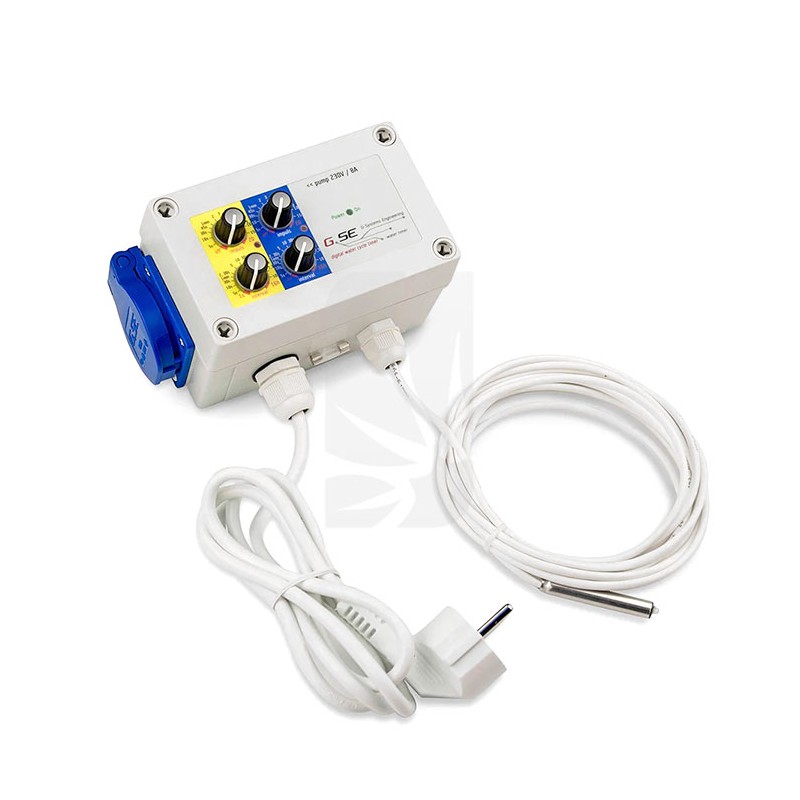

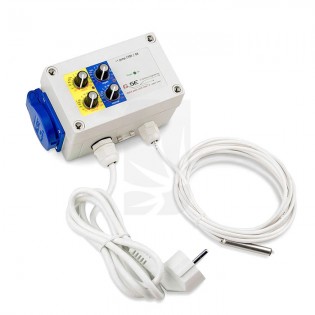

This programmable irrigation controller from GSE allows you to define irrigation and rest windows with precision, synchronized with the room's photoperiod. The electronics integrate a light sensor that distinguishes day/night to activate irrigation only when it benefits plant physiology, reducing the risk of waterlogging in darkness.

With a protection rating of IP44, it works with pumps and valves in humid environments, and the internal relay handles up to 1800 W / 8 A (inductive load 3 A).

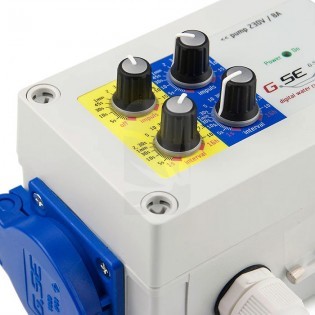

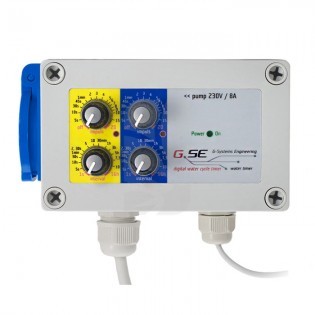

The compact format 130 × 80 × 70 mm can be installed on a wall or rack, and the dial allows quick adjustments without complex menus.

In ebb and flow systems, pulse precision prevents overwatering; in drip systems, it enables repeated short irrigations that stabilize EC and oxygenation.

As part of the irrigation accessories, the GSE Irrigation Timer - Irrigation provides uniformity, water savings, and consistency batch after batch within a professional irrigation system.

Indoor growing GSE Irrigation Timer - Irrigation

In grow tents, greenhouses, and technical rooms, pump automation reduces manual labor and variability. The GSE timer allows:

• Pulse irrigation in draining substrates (coco, clay pebbles), avoiding excessive leaching.
• Controlled ebb&flow cycles, with reproducible fill and rest times.
• Integration with osmosis or pressurized tanks, protecting pumps with pause times.
• Synchronization with light thanks to the LDR sensor: irrigation active only during the day, or reverse logic if the crop requires it.

What is the GSE Irrigation Timer - Irrigation for?

• Automate pump and solenoid valve starts with short, repeated cycles.
• Optimize nutrient absorption by programming multiple micro-irrigations that keep EC stable.
• Prevent excess nighttime humidity by limiting irrigation during the dark phase.
• Homogenize supply between tables, trays, and drip lines.
• Save water and energy by adjusting exact operating times.

Irrigation accessories for indoor growing GSE Irrigation Timer - Irrigation

For a balanced system, it is advisable to accompany with a sediment filter at the head, check valve, external relay if the pump exceeds 8 A inductive, and residual current protection in the electrical panel. EC/pH meters and level alarms provide additional control. At Hydroponics Blanes you will find pumps, distributors, hose and compatible connectors, as well as discreet shipping.

How to use GSE Irrigation Timer - Irrigation?

1. Fix the unit to the wall away from direct splashes (IP44 allows ambient humidity, not immersion).
2. Connect pump/solenoid valve to the timer output (230 V / 50 Hz), respecting 8 A max. (inductive 3 A).
3. Place the light sensor facing the illuminated area to activate day/night logic.
4. Adjust irrigation time (ON) and interval (OFF) with the dials; start with 15–45 s ON and 15–30 min OFF in coco as a starting point.
5. Test the circuit with clean water, check flow and drainage; fine-tune parameters according to target drainage (10–20%).

Key specifications: Brand GSE Systems • Model Water Timer IR 8A • IP44 • 1800 W / 8 A (ind. 3 A) • 230 V • 50 Hz • 130×80×70 mm • Approx. weight 86 g.

GSE Irrigation Timer - Irrigation Price

Cost-effective solution to make the leap to automation without complex controllers. At Hydroponics Blanes you will find packs with pump, hose, and filters at an affordable price in the online grow shop.

Where to buy GSE Irrigation Timer - Irrigation online?

Purchase this timer at Hydroponics Blanes, trusted Grow Shop with a complete catalog of irrigation accessories and discreet shipping throughout Spain and the EU. The technical team advises on sizing tanks, flow rates, and frequencies, ensuring a stable irrigation system for indoor crop irrigation.

For those seeking consistency and less manual labor, the GSE Irrigation Timer - Irrigation offers fine pulse control, photoperiod integration, and easy installation. A reliable tool to boost productivity in indoor growing with the support of Hydroponics Blanes and the convenience of the online grow shop.
