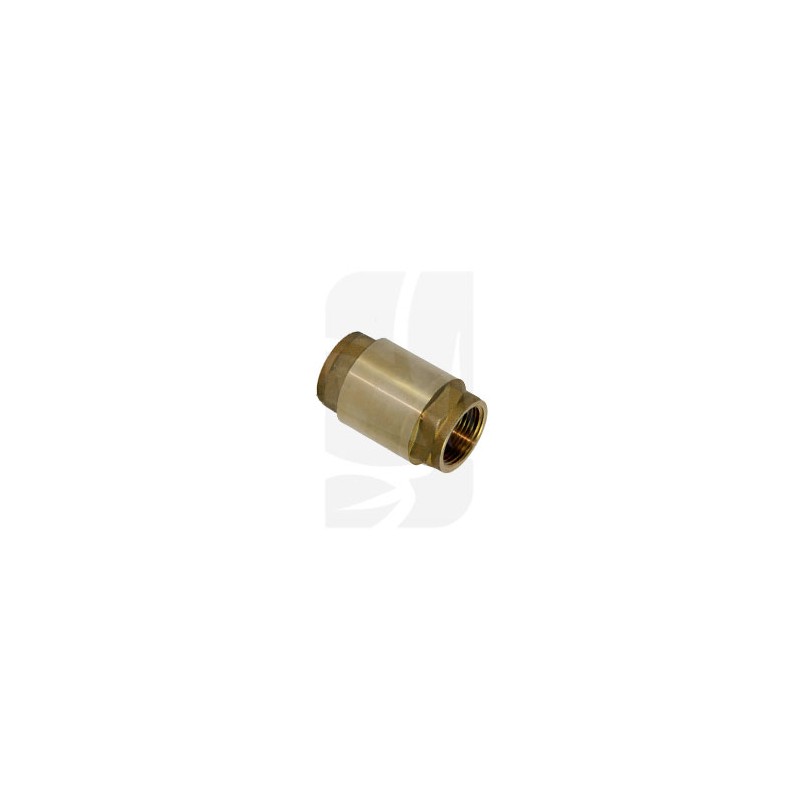

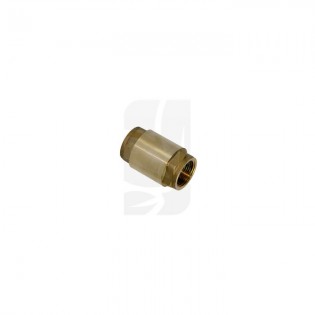

Check valve 1

1" Check Valve for Indoor Irrigation Systems

Designed for pressurized and recirculation installations, the 1" Check Valve incorporates an internal mechanism that opens with forward pressure and closes instantly when there is a drop in pressure or an attempt at backflow.

This automatic closure protects the integrity of the irrigation system, prevents unwanted siphoning, keeps the lines primed, and reduces pressure spikes that fatigue joints and fittings.

The brass body provides robustness and corrosion resistance, while the seat and sealing element ensure tightness. Its 1 inch (BSP) thread facilitates compatibility with pumps, manifolds, filters, and pipes commonly used in technical horticulture.

In hydroponics environments, NFT, RDWC, or drip irrigation, a well-placed non-return valve improves flow accuracy, minimizes mixing of returns, and protects expensive equipment such as flow meters, EC/pH meters, and osmosis membranes.

Installation is straightforward: screw it in with PTFE tape following the flow arrow and integrate it between the pump discharge and the main branch or just before the equipment you want to protect.

Indoor Growing 1" Check Valve

In an indoor grow, where irrigation cycles are frequent and automated, the 1" Check Valve keeps the lines pressurized, prevents the circuit from emptying after each irrigation, and stabilizes filling times. This results in more repeatable irrigations, less water stress, and fewer purges. It also prevents water from the branch from returning to the tank when the pump stops, which is crucial if fertilizer is dosed inline or if working with solutions of different concentrations.

What is the 1" Check Valve for?

Its function is to ensure unidirectional flow and block backflow of liquid. It is used to:

• Protect water pumps against water hammer and backflow.
• Maintain priming in equipment located above the tank level.
• Prevent cross-contamination between branches of the irrigation system.
• Stabilize the operation of filters, mixers, and dosers.
• Reduce loss of nutrient solution by siphoning during stops.

Accessories for Indoor Growing Irrigation 1" Check Valve

Combine this piece with 1" fittings, shut-off valves, inline filters, pressure gauges, and water hammer arrestors for a reliable set. At Hydroponics Blanes, your trusted Grow Shop, you will find compatible irrigation accessories: PTFE tape, quick couplings, reducers to 3/4", control probes, and irrigation timers. A typical setup: tank → prefilter → pump → 1" Check Valve → manifold → branches with drippers. This way you can irrigate indoor crops with precision and safety.

How to use the 1" Check Valve?

1. Identify flow direction: align the valve arrow with the direction of flow towards the emitters.
2. Prepare threads: apply 8–12 turns of PTFE tape to compatible male 1" connections.
3. Screw in by hand and finish with a wrench without exceeding torque; avoid forcing the brass body.
4. Recommended location: pump outlet or before the equipment to be protected (fine filter, meter, doser).
5. Leak test: pressurize the circuit, check for leaks, and verify there is no backflow when the pump stops.
6. Maintenance: periodically check for dirt on the seat; if there are particles, install a prefilter beforehand.

Indicative specifications: brass body, female-female 1" thread, single flow direction, suitable for irrigation water and nutrient solutions commonly used in horticulture.

1" Check Valve Price

The price of the 1" Check Valve offers a very favorable cost/benefit ratio: it prevents breakdowns, reduces consumption, and extends the life of pumps and accessories. Sold individually with immediate availability and discreet shipping 24/48 h from Hydroponics Blanes.

Where to buy 1" Check Valve online?

Purchase the 1" Check Valve at Hydroponics Blanes, your online grow shop specialized in indoor growing and irrigation accessories. Technical catalog, advice, and fast logistics for all of Spain and the EU.

Optimize your irrigation system with the 1" Check Valve: a compact, reliable, and easy-to-install part that ensures correct flow and protects every element of the circuit. Available at Hydroponics Blanes, trusted Grow Shop, with mounting options for watering indoor crops consistently, safely, and efficiently.
