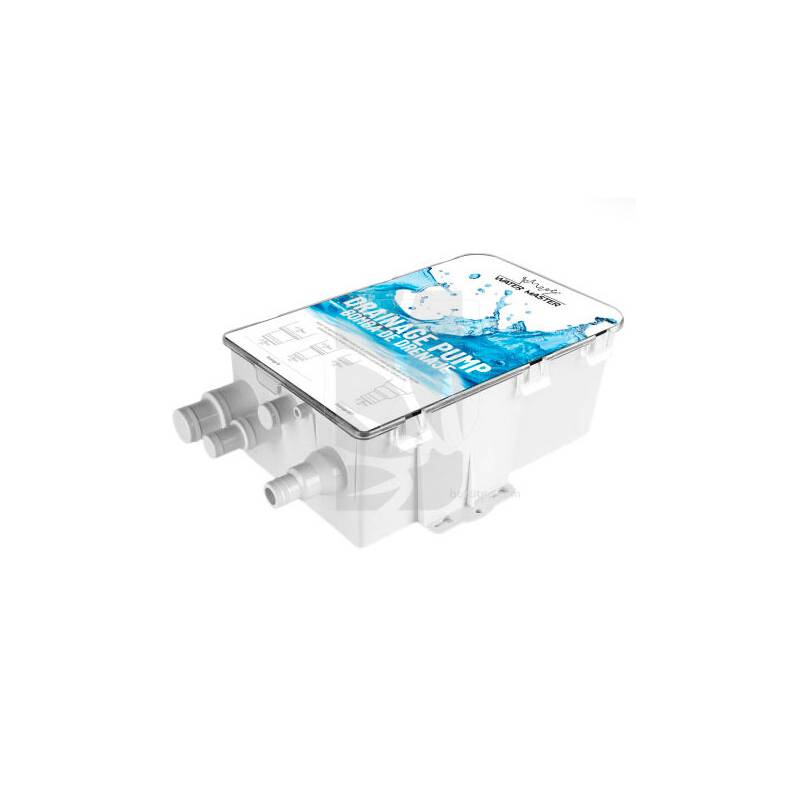

Water Master drainage pump

Buy Water Master Drainage Pump

The Water Master Drainage Pump is designed to collect and evacuate water from grow tables, trays, hydroponic systems and indoor irrigation areas. Automatic operation keeps the water level under control without relying on constant manual activation.

When the accumulated liquid reaches approximately 45 mm in height, the integrated float activates the pump and drainage begins.

The approximate maximum flow rate of 2,840 litres per hour makes it possible to move large amounts of water quickly towards a drain or return it to the main reservoir when the system operates through recirculation.

Several inlets make it easier to connect different drainage points, while the single outlet concentrates the flow into one evacuation pipe. The non-return valve helps prevent the pumped liquid from flowing back into the collection chamber.

In addition, the removable mesh filter makes regular cleaning easier and protects the mechanism against debris that could reduce performance.

This solution is especially practical for managing drainage generated by pots with automatic irrigation, flood tables, cannabis growing trays and hydroponic installations.

As an indoor growing accessory, it helps reduce manual tasks, improve the organisation of the installation and maintain constant evacuation of excess water.

What is the Water Master Drainage Pump?

The Water Master Drainage Pump is an automatic water collection and evacuation unit designed for agricultural, hydroponic and indoor growing installations. The body incorporates a collection chamber, several drainage pipe inlets, an electric pump, an activation float and an outlet prepared to direct the liquid to another point.

Unlike a conventional irrigation pump, the main purpose of this model is not to send nutrient solution from a reservoir to the plants. The objective is to remove the water arriving from trays or tables after each irrigation cycle. The unit remains ready and begins operating when the accumulated water reaches the level required to activate the float.

The design allows operation with both run-to-waste systems and recirculating systems. In a run-to-waste installation, the outlet can be directed towards an authorised drainage point. In a recirculating circuit, the water can return to the corresponding reservoir for subsequent monitoring and reuse, provided the growing strategy includes this procedure.

The flow rate of around 2,840 L/h provides sufficient capacity for grow tables of different sizes. In large installations, it is advisable to calculate the volume of drainage generated, irrigation frequency, pipe length and the height the water must overcome. When several large tables are installed, one independent unit per table may be recommended.

What is the Water Master Drainage Pump used for?

The Water Master Drainage Pump is used to automate the removal of excess water after irrigation. In an indoor cannabis grow, each pot may produce drainage when the solution passes through the growing medium and exits from the bottom. Without a suitable system, the liquid may remain trapped in trays, cause unpleasant odours, increase ambient humidity or make cleaning tasks more difficult.

The pump collects this excess at a low point and transfers it to the selected location. This function helps prevent waterlogging, overflows and prolonged contact between the pots and drained water. It also helps maintain a more organised growing area, with less need to empty containers manually.

In fertigation systems, monitoring the drainage volume helps assess how the crop responds to the amount of water applied. Automation does not replace the measurement of pH, electrical conductivity or drainage percentage, but it simplifies liquid removal after each cycle.

The pump can also connect several drains through the available inlets. This feature makes it possible to centralise collection from different points, provided the combined flow does not exceed the actual capacity of the unit or cause water to enter faster than it can be evacuated.

The non-return valve limits water flowing back from the outlet pipe. This protection is useful when liquid remains inside the pipe after the pump stops, as it reduces the risk of part of the evacuated volume returning to the chamber.

How is the Water Master Drainage Pump used?

Installation begins by placing the pump at the lowest point of the drainage circuit. Tables and trays must have a suitable incline so that the water flows by gravity towards the unit inlets. Before connecting the pipes, it is advisable to check the diameters, joints and route of each line.

The inlets must be connected to the drains of the tables or trays. Each connection must be secure to prevent leaks. The outlet can be directed towards a drain, collection container or recirculation reservoir, depending on the installed system.

After completing the hydraulic connections, check that the electrical cable remains away from areas where splashing may occur. The unit includes approximately 1 metre of 18 AWG cable. The electrical connection must be made at a protected point suitable for damp environments and in accordance with the safety requirements of the installation.

When the water reaches approximately 45 mm, the float automatically activates the pump. The liquid leaves through the selected pipe until the level drops. The movement of the float must not be obstructed by pipes, roots, dirt or other objects.

To maintain performance, the removable mesh filter should be dismantled and cleaned regularly. The tab-lock lid, non-return valve, inlets and outlet pipe should also be checked. Growing-medium debris, roots, leaves or salt deposits may reduce the flow rate and force the motor to operate for longer periods.

Before leaving the system running unattended, it is advisable to carry out a test with clean water. This test makes it possible to check automatic start-up, flow direction, connection tightness and drainage capacity. Never handle the pump while it is connected to the power supply.

Buy Water Master Drainage Pump

Buying the Water Master Drainage Pump is a practical choice for automating grow tables, drainage trays and hydroponic systems where water collects at one point. The unit combines automatic activation, a high flow rate, multiple inlets and easy access to the filter.

Before choosing it, check the number of connected tables, the maximum volume generated during each irrigation cycle, the distance to the drainage point and the height difference. The nominal flow rate of 2,840 L/h represents the stated maximum capacity, but actual performance may decrease when the delivery height or pipe length increases.

It is also necessary to determine whether the crop uses a run-to-waste or recirculating system. In recirculation, the returned liquid requires monitoring before being reintroduced into the irrigation programme. In a run-to-waste system, the outlet must be directed to an appropriate evacuation point in accordance with applicable regulations.

The approximate weight of 1.37 kg makes placement easier in grow rooms and drainage structures. The quick-access lid allows the interior to be inspected, while the removable filter simplifies routine maintenance.

Water Master Drainage Pump price

The price of the Water Master Drainage Pump may vary depending on availability, promotions and commercial conditions. When assessing the purchase, it is advisable to consider the drainage capacity, automatic float system and the possibility of reducing manual tasks related to emptying trays.

A correctly sized installation can prevent wasted time, overflows and water accumulation around the plants. In professional projects or rooms with several tables, the number of pumps should be calculated according to the volume of drainage produced simultaneously.

The product page allows you to check the current price, stock and available specifications before completing the order. It is also advisable to review the necessary accessories, such as pipes, connectors, clamps and collection containers.

Where can you buy the Water Master Drainage Pump online?

You can buy the Water Master Drainage Pump from Hydroponics Blanes, a trusted grow shop specialising in irrigation systems, drainage, hydroponics and indoor growing equipment.

As a grow shop in Spain, Hydroponics Blanes provides information to help select components compatible with tables, trays and recirculation circuits. Every order is prepared with suitable protection and sent using discreet shipping.

In the online shop, you will also find pipes, reservoirs, water pumps, connectors and other components for completing an installation. Choosing compatible parts helps prevent leaks, flow restrictions and problems during automatic operation.

The Water Master Drainage Pump keeps tables free from accumulated water through automatic evacuation of up to 2,840 litres per hour. A practical unit for organising drainage, reducing manual intervention and protecting the root zone from prolonged contact with excess water.
