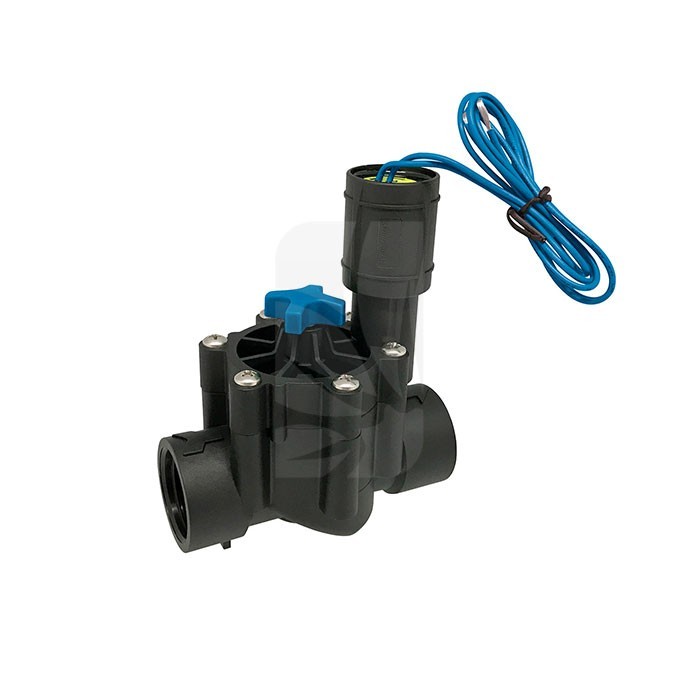

Aqua Control Solenoid Valve 1"

Electrovalve Aqua Control 1"

The Electrovalve Aqua Control 1" is a diaphragm valve with a 1" female thread designed to manage irrigation sectors in cabinets, technical rooms, and compact greenhouses.

The assembly combines technical materials —nylon + fiberglass and EPDM elastomers— with a 24 VAC solenoid (starting current 0.4 A; operating 0.3 A) for reliable opening/closing.

It incorporates a flow regulator and internal filter that protect the mechanics against particles, maintaining circuit stability.

It works in a wide range of pressure 0.35–17.24 bar (5–250 PSI) and supports a max flow rate 5.67 m³/h (≈94.5 L/min), suitable figures for headers with bypass, manifolds, and multiple drip lines.

Compact dimensions (12 x 6 x 6 cm; 500 g) make it easy to install in valve boxes or wall panels. The valve responds quickly to standard 24 VAC controllers, allowing irrigation sectors and applying fertilization recipes by zones. Recommended operation between 4 °C and 43 °C; not suitable for wastewater.

Available at the Hydroponics Blanes online grow shop, a trusted Grow Shop with discreet shipping and a wide range of irrigation accessories.

Indoor growing Electrovalve Aqua Control 1"

In indoor growing, Electrovalve Aqua Control 1" allows you to divide the installation into sectors (propagation, growth, flowering) and control each one from a controller. The integrated flow regulation helps compensate for pressure differences between lines, achieving uniform drip and avoiding excess at the last drippers. The internal filter reduces incidents due to sediment and prolongs the life of pumps, secondary filters, and emitters.

What is Electrovalve Aqua Control 1" for?

It is used to open and close the water flow automatically, sectorize irrigation, apply nutrient recipes by zones, and protect the circuit against overpressure. It is useful for activating irrigation rings, pressure-compensating drippers, micro-sprinkling, or feeding grow tables. In systems with a tank and pump, the valve prevents unwanted returns when combined with a check valve on the supply line.

Irrigation accessories for indoor growing Electrovalve Aqua Control 1"

To get the most out of Electrovalve Aqua Control 1" it is advisable to integrate:

• 24 VAC controller with independent outputs and suitable transformer.
• Inline filter (120–150 mesh) to reinforce circuit protection.
• Pressure gauge and pressure reducer if the network exceeds the optimal working range of the emitters.
• Check valve and shut-off valves for safe maintenance.
• Fittings and 1" pipe compatible (PE, pressure PVC) and tape/PTFE for sealing.
• Optional sensors: pH meter, EC meter, and flow meter for diagnostics.

All available at Hydroponics Blanes, with compatibility guide and discreet shipping.

How is Electrovalve Aqua Control 1" used?

1) Place on the main line or in each sector, respecting the flow direction indicated on the body.
2) Install pre-filtration and, if applicable, pressure reducer to protect emitters.
3) Connect to 1" female/female fittings or adapters to the existing pipe; seal threads with PTFE.
4) Wire the 24 VAC solenoid to the controller (common and station); check insulation and common polarity.
5) Slowly open the line and purge air; adjust the flow regulator until the sector's target pressure is stabilized.
6) Program irrigation times, pulses, and windows according to crop demand; check uniformity when watering indoor crops.
7) Maintenance plan: check internal filter, leak tests, and preventive cleaning of sediments.

Key parameters in the datasheet: range 0.35–17.24 bar, max flow 5.67 m³/h (≈94.5 L/min), 24 VAC, nylon + fiberglass, EPDM seals, 12 x 6 x 6 cm, 500 g, color black/blue. Not recommended for use with water below 4 °C or above 43 °C, nor with wastewater.

Price Electrovalve Aqua Control 1"

The price of Electrovalve Aqua Control 1" varies according to promotions, availability, and packs with controller, filter, or fittings. At Hydroponics Blanes there are offers to complete irrigation headers with optimized cost.

Where to buy Electrovalve Aqua Control 1" online?

Available at Hydroponics Blanes, trusted Grow Shop and online grow shop specialized in indoor growing and irrigation systems. Simple ordering, secure payment, and discreet shipping throughout Spain. After purchase, an email arrives with a discount code for the next order.

The Electrovalve Aqua Control 1" provides professional control to domestic and semi-professional installations: reliable opening, flow regulation, and integrated protection.

Combined with a controller, filtration, and suitable emitters, it helps to water indoor crops with precision and repeatability.

At Hydroponics Blanes it is possible to complete the installation with compatible irrigation accessories and technical support at all stages of the project.
